Elevator Limit Switch: How It Works & Safety Role
In This Article
An elevator limit switch is a safety device that helps stop a lift from travelling beyond its safe top or bottom position. For building owners in Bangladesh, this small component matters because overtravel can damage equipment and create serious passenger safety risk.
This guide explains how limit switches work, where they are installed, what failure signs to watch for, and when to call a technician. It is part of Sheikh Elevator World’s elevator safety component cluster for Dhaka building owners.
“A limit switch is simple, but its job is critical: stop elevator movement before overtravel becomes dangerous.”
— Sheikh Elevator World, 2026
What Is an Elevator Limit Switch?

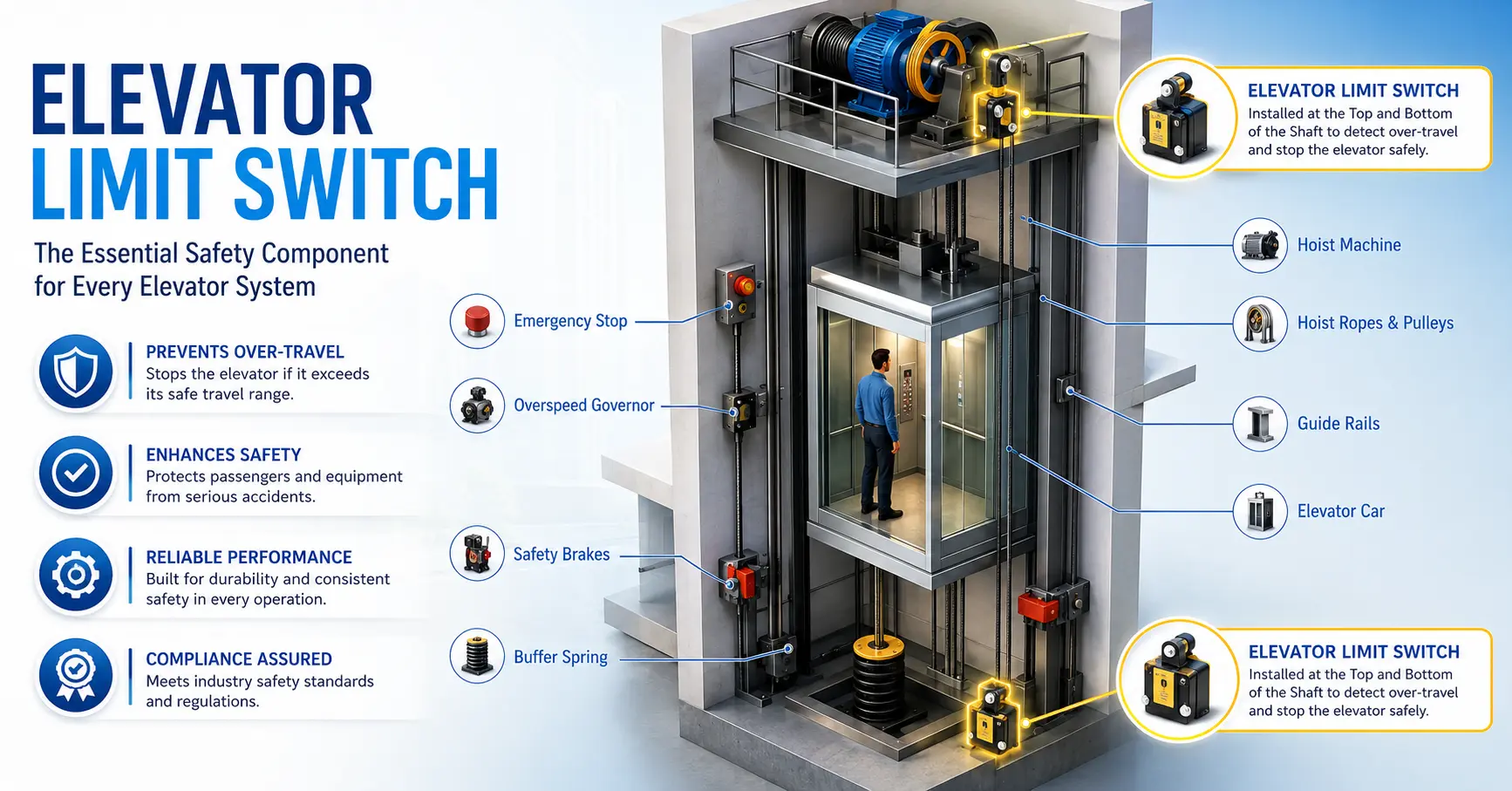

An elevator limit switch is an electrical safety switch installed near the top and bottom ends of lift travel. It tells the control system when the elevator has reached a defined travel limit. If the lift moves too far, the switch opens the safety circuit and stops movement.
Most elevator systems use normal terminal limit switches and final limit switches. The normal switch supports controlled stopping near terminal floors, while the final limit switch acts as a backup if normal stopping fails.
If a lift stops suddenly near the top or bottom floor, do not reset repeatedly. Call a technician to inspect switch position, wiring, and controller faults.
Warning Signs of Limit Switch Problems
Limit switch faults often appear as irregular stopping, sudden shutdowns near terminal floors, or repeated controller errors. Building staff should not bypass these faults because they may indicate alignment, wiring, or safety circuit problems.
- Lift stops unexpectedly near top or bottom floor
- Repeated fault code after reaching terminal floor
- Poor leveling at first or last floor
- Visible damage or loose switch bracket
- Technician reports safety circuit interruption
Limit Switch Inspection Points
A professional inspection checks both mechanical position and electrical function. The switch must activate at the right travel point, stay firmly mounted, and communicate correctly with the lift controller.
| Item | What to check | Why it matters |
|---|---|---|
| Switch mounting | Loose bracket or misalignment | Wrong position can delay activation |
| Wiring | Loose or damaged cable | Circuit failure may stop lift operation |
| Activation point | Switch triggers too early or late | Incorrect timing affects safe stopping |
| Controller fault log | Repeated terminal errors | Shows recurring safety-circuit issue |
Never bypass a final limit switch to keep a lift running. Bypassing safety circuits can create serious passenger and equipment risk.
How Sheikh Elevator World Can Help
Sheikh Elevator World can inspect elevator safety components, identify limit switch faults, and suggest repair or replacement where needed. Our team supports residential and commercial buildings in Dhaka and nearby areas.
Limit switches should be checked during preventive maintenance, especially in buildings with frequent use, dust, humidity, or older lift systems.
Frequently Asked Questions
What does an elevator limit switch do?
An elevator limit switch helps stop the lift when it reaches a set travel limit. It prevents the cabin from moving too far above or below the normal travel area.
Where is the limit switch located in an elevator?
Limit switches are usually installed near the top and bottom terminal areas of the elevator shaft. Exact placement depends on the lift design and controller system.
Can a lift run with a faulty limit switch?
A faulty limit switch can stop lift operation or create unsafe movement risk. It should be inspected and repaired by a qualified technician before regular use continues.
How often should limit switches be inspected?
Limit switches should be checked during routine elevator maintenance and whenever terminal-floor stopping problems appear. High-use buildings may need more frequent inspection.
