How a Lift Speed Governor Works: A Complete Safety Guide for Bangladesh Building Owners
A lift speed governor is the final safety guard between your passengers and an uncontrolled elevator. It monitors the lift car’s movement at all times — and if the speed exceeds a safe limit, it triggers the braking system to bring the lift to a controlled stop.
In this guide, the technical team at Sheikh Elevator World — with over 15 years of elevator installation and safety experience in Bangladesh — explains exactly how the speed governor works, what signs indicate a problem, and what Dhaka building owners should do to keep their lifts safe.
What Is a Lift Speed Governor and Why Does It Matter?
A speed governor in a lift system is a mechanical and electrical safety device designed to detect overspeed conditions. It watches the elevator car’s movement at all times. If the car moves faster than its rated safe speed — particularly in a downward direction — the governor activates the safety gear, which physically grips the guide rails and stops the lift.
For building owners across Dhaka — whether managing a residential apartment in Mirpur, a commercial tower in Gulshan, a hospital in Azimpur, or a shopping complex in Uttara — this is not a technical formality. It is a passenger safety requirement.
In our 15 years of installing and servicing elevators across Dhaka and Bangladesh, we have seen how a well-maintained speed governor prevents disasters — and how an ignored one becomes a serious liability.
International elevator safety frameworks such as ISO 8100 and EN 81 require governor and safety gear systems as standard equipment on traction passenger lifts. These exist for good reason.

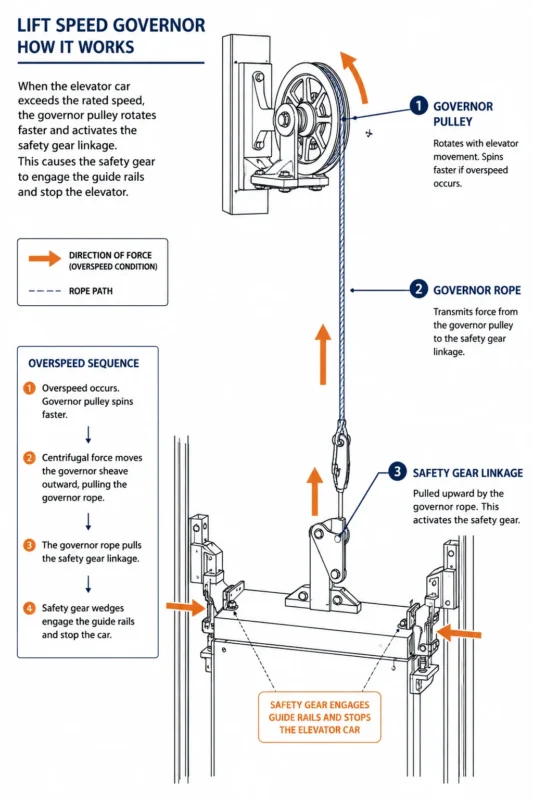

How Does a Lift Speed Governor Work? (Step-by-Step)
The elevator speed governor working principle is straightforward: it converts abnormal speed into a mechanical safety action. Here is what happens inside the system during an overspeed event:
Step 1 — Normal Operation: Governor Monitors Constantly
During regular lift travel, the governor rope moves in sync with the elevator car. The governor pulley rotates smoothly. Nothing triggers. The system is simply watching.
Step 2 — Overspeed Is Detected
If the lift car exceeds its preset safe speed — due to brake failure, rope slip, traction loss, or a control fault — the governor pulley rotates faster than its designed tripping threshold. The governor detects this immediately.
Step 3 — Electrical Safety Circuit Opens
The governor’s electrical switch opens the safety circuit and signals the control panel to cut power to the drive machine. This is the first layer of response.
Step 4 — Governor Grips the Rope
If the lift continues to accelerate despite the electrical signal, the governor mechanically grips the governor rope. The rope is no longer free to move.
Step 5 — Safety Gear Activates
The gripped rope pulls the safety gear operating linkage on the lift car frame. The safety gear wedges against the guide rails with enough force to bring the car to a stop.
Step 6 — Mandatory Inspection Before Restart
After any governor trip, the lift must not be restarted without a professional inspection. The safety gear, governor rope, and linkage all need to be checked and reset by a trained technician. This is where elevator safety audit services become essential.

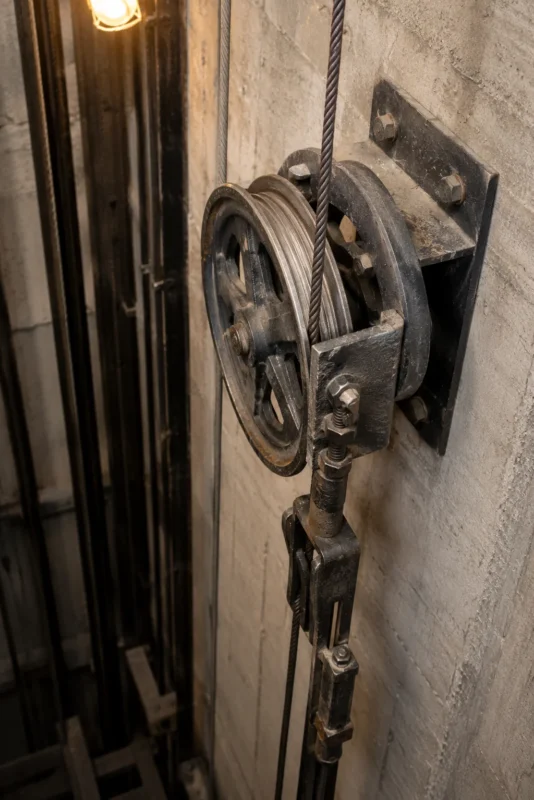

Main Parts of a Lift Speed Governor System
Understanding the components helps building owners ask the right questions during maintenance visits. Each part is critical — failure in any one part compromises the whole safety chain.
| Component | Role | Common Failure in Bangladesh |
|---|---|---|
| Governor Pulley | Rotates with the rope; detects speed change | Bearing wear, misalignment |
| Governor Rope | Connects governor to safety gear linkage | Rust, fraying, incorrect tension |
| Tension Pulley | Keeps rope correctly stretched | Debris buildup in dusty shafts |
| Safety Gear | Physically grips rails to stop the car | Seized from lack of lubrication |
| Electrical Switch | Opens safety circuit on overspeed detection | Corrosion, bypassing (dangerous!) |
Governor vs Safety Gear — What Is the Difference?
These two components are often confused. They are separate devices that must work together.
- The governor is the detection brain — it identifies when the lift is moving too fast.
- The safety gear is the stopping hand — it physically grips the guide rails and halts the car.
If you only check the governor and ignore the safety gear (or vice versa), you have an incomplete safety check. Both must be tested together during elevator maintenance in Dhaka.
Warning Signs Your Lift Governor Needs Inspection
A governor problem is not always visible to passengers. But these signs should prompt an immediate call to a lift technician:
- 🔴 Lift stops suddenly without explanation — The governor safety switch may have tripped.
- 🔴 Grinding or rattling near the machine room — Could indicate pulley bearing failure or rope misalignment.
- 🔴 Visible rope damage — Rust, frayed strands, or slack in the governor rope requires immediate attention.
- 🔴 Uneven or jerky lift movement — Multiple causes, but safety devices including the governor should be part of diagnosis.
- 🔴 Safety switch triggering repeatedly — Never bypass this. It means something is genuinely wrong. Call for elevator governor repair service in Dhaka immediately.
Common Reasons Lift Governors Fail in Dhaka Buildings
Based on our service experience across Mirpur, Gulshan, Banani, Uttara, and Azimpur, these are the most frequent causes of governor problems in Dhaka:
Lack of Annual Maintenance
Many building committees only call for service when something breaks. By then, the governor rope may already be worn, a switch may be corroded, or the pulley bearing may be damaged. Preventive maintenance is far cheaper than emergency repair.
Dust and Humidity in Lift Shafts
Dhaka’s climate accelerates rust on governor ropes and corrosion on electrical switches. Lift shafts in older buildings often accumulate dust that affects pulley movement and rope tension. This is why elevator governor maintenance in Dhaka should be scheduled at least annually.
Wrong Installation or Adjustment
A governor must be calibrated to match the lift’s rated speed, load, and rope size. Incorrect adjustment from a low-quality installer can mean the governor trips too late — or not at all.
Bypassed Safety Switches
We have encountered lifts in Dhaka where technicians bypassed the governor’s electrical switch to “fix” a nuisance trip. This is extremely dangerous. The switch exists for a reason — find the root cause, never bypass the safety circuit.

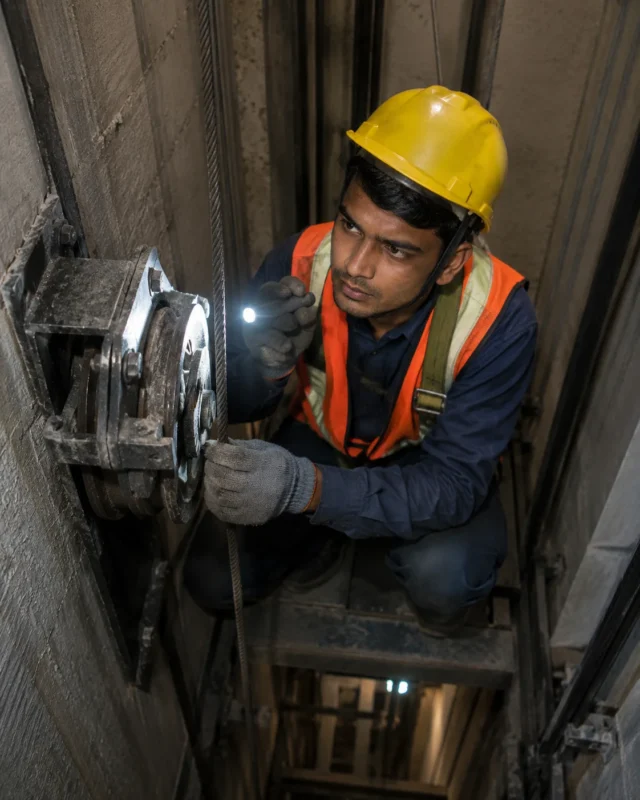

What Does a Professional Governor Inspection Include?
A proper lift governor inspection in Dhaka should not be a 10-minute visual check. When our team conducts a governor inspection, it covers:
- Visual inspection of governor body, housing, and mounting
- Governor rope condition — rust, broken strands, tension level
- Pulley rotation check — smooth movement, bearing condition
- Tension pulley condition and movement
- Electrical safety switch response test
- Overspeed tripping test at the rated tripping speed
- Safety gear linkage inspection and movement check
- Reset procedure and documentation
At the end, you should receive a written report with observed conditions, risk assessment, recommended actions, and a next inspection date. If a company cannot provide this, find one that can.
When Should a Lift Governor Be Replaced?
Repair is not always the right answer. Lift governor replacement in Bangladesh is necessary when:
- The governor is physically damaged beyond safe repair
- It is mechanically inaccurate and cannot be reliably calibrated
- The lift has been modernized and the old governor is no longer compatible
- Certified spare parts are no longer available or reliable
- The governor is more than 15–20 years old with no maintenance history
A cheap governor is never a smart choice for a safety-critical component. Correct selection for your lift’s speed, load, and rail type matters far more than the lowest price on a quotation.
Part of Our Elevator Safety Series
This guide is part of the Sheikh Elevator World Elevator Safety Series — a complete resource for building owners across Dhaka who want to understand, maintain, and audit their lift systems properly.
The full series covers every critical safety system inside your elevator — from overspeed protection to brake testing, door lock inspection, and ARD systems.
Explore the full Elevator Safety Guide →
Frequently Asked Questions
How does a lift speed governor work?
A lift speed governor monitors elevator movement through a governor rope and rotating pulley. If the lift car exceeds its safe speed limit, the governor trips, grips the rope, and activates the safety gear to stop the lift on the guide rails.
What is the function of an elevator overspeed governor?
The elevator overspeed governor detects abnormal speed and triggers the safety system — specifically the safety gear — before uncontrolled movement becomes dangerous for passengers.
Is a speed governor required in every lift?
Most traction passenger lifts use a governor and safety gear system as standard. Exact requirements depend on lift type, rated speed, and applicable safety standards such as EN 81 or ASME A17.1.
How often should a lift governor be inspected in Dhaka?
At minimum, once per year during an annual safety inspection. High-traffic lifts in commercial buildings, hospitals, and busy residential towers should be checked every 3–6 months. Older lifts need more frequent attention.
What is the price of a lift governor in Bangladesh?
Price varies based on brand, lift speed rating, rope size, safety certification, and installation requirements. A site visit is usually needed for accurate pricing. Contact Sheikh Elevator World for a free assessment.
Who provides elevator governor repair service in Dhaka?
Sheikh Elevator World provides governor inspection, testing, repair, replacement, and full elevator safety audits across Dhaka including Mirpur, Gulshan, Uttara, Banani, and Azimpur.
Final Thoughts: Don’t Wait for a Governor Failure
A lift speed governor works silently every day. Building owners and facility managers rarely think about it — until it fails. By that point, the risk is real.
The right approach is scheduled inspection, preventive maintenance, and quick response to any warning sign. Whether your building has a residential elevator, commercial lift, or cargo elevator, the governor is a component that should never be skipped during service.
Sheikh Elevator World has been providing lift installation, maintenance, and safety services across Bangladesh for over 15 years. Our team is available for governor inspection, repair, replacement, and full elevator safety audits.
